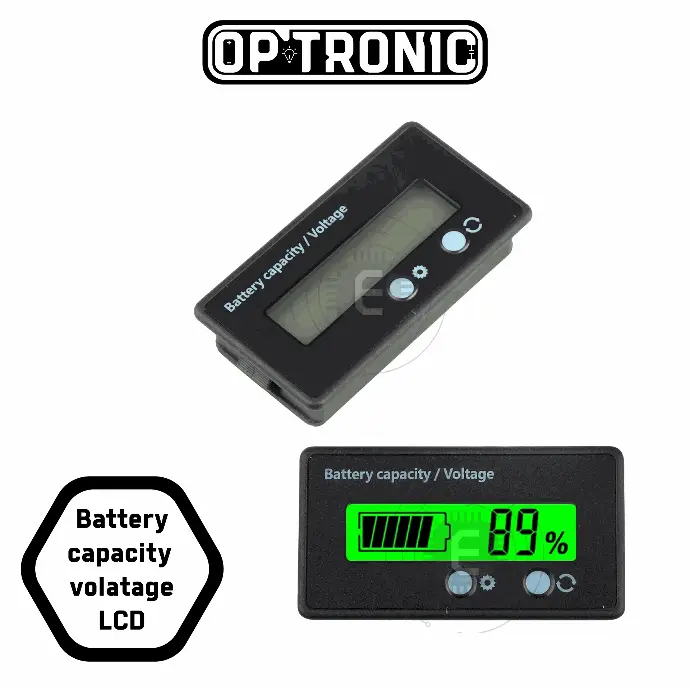

Capacity Indicator Voltmeter Voltage Tester GY-6S for LCD Lead Acid and Lithium Battery 6-73V

Specifications:

• Model: GY-6S
• Color: Black
• Backlight color: Green
• Screen size: 43 x 11.3mm
• Voltage range: 6-70V
• Circuit load current: 5 – 6mA
• Suitable for: 3-15pcs 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V; Fe Batteries
• Dimensions: 61.3 x 33.3 x 13.5mm
• Mounting hole Size: 58 x 28.1mm
• Wire Length: 30cm

Battery specifications:

P=lead acid, L=lithium battery, F=lithium iron phosphate battery

Single string battery nominal voltage:

Lead acid = 12V, lithium battery = 3.7V, lithium iron phosphate = 3.2V

Setup steps:

• Press and hold the setting button to power the battery, enter the setting interface
• Short press the setting button to select the battery specification (P=lead acid L=lithium battery F=lithium iron phosphate battery)
• Short press the function key to select the number of battery strings (the setting key is increased, the function key is reduced)
• Long press the function key to set the S mode, the setting key selects the corresponding mode, and the function key is turned on or off.
• After setting it, you can re-power it.

Code: Suitable for

L3: 3 string lithium

L4: 4 string lithium

L5: 5 string lithium

L6: 6 string lithium

L7: 7 string lithium

L8: 8 string lithium

L9: 9 string lithium

L10: 10 string lithium

L11: 11 string lithium

L12: 12 string lithium

L13: 13 string lithium

L14: 14 string lithium

P12V: 12V lead-acid

P24V: 24V lead-acid

P36V: 36V lead-acid

P48V: 48V lead-acid
